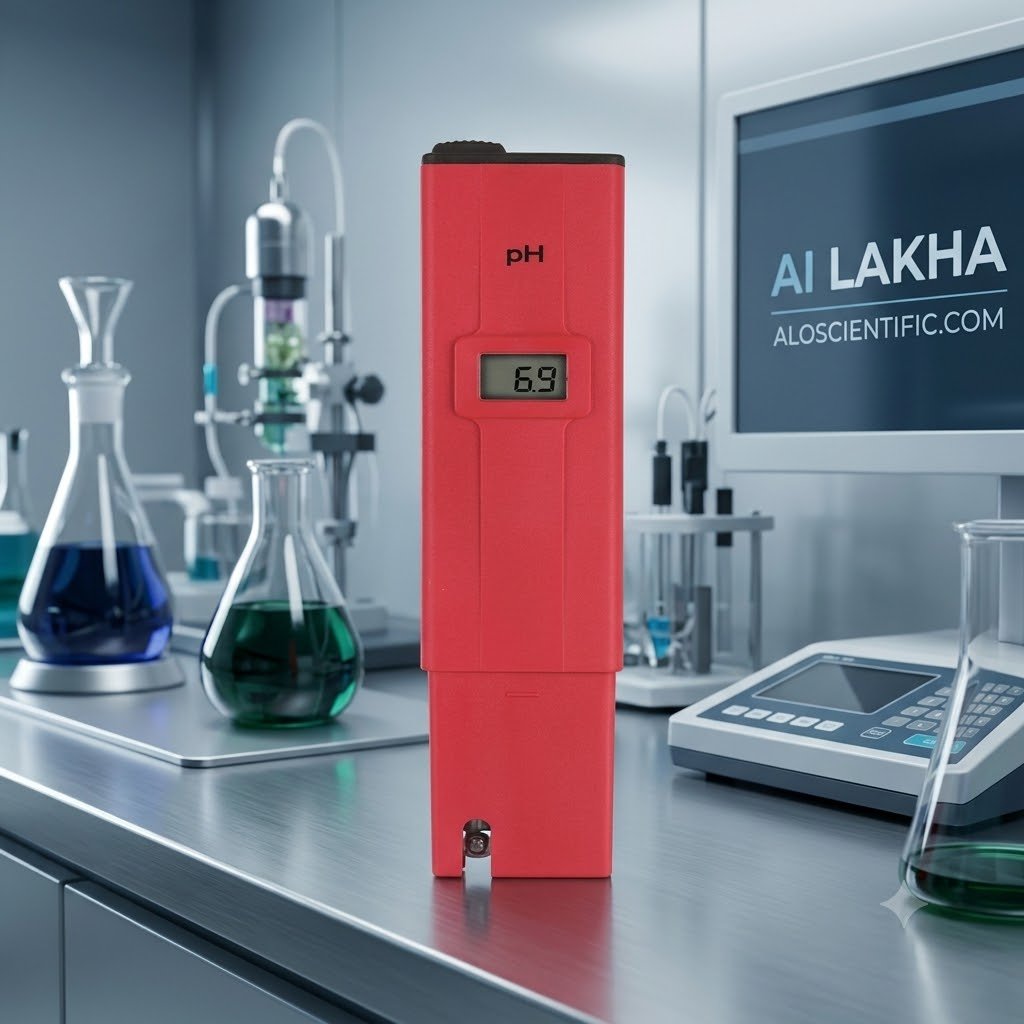

PH Meter Pocket PH107 Digital Water Tester for Aquariums & Labs

Full Technical Breakdown, Use Cases, Maintenance Protocols

Comprehensive Precision in a Pocket-Sized Form Factor

Maintaining precise pH balance is a critical requirement across many fields, including aquatic life management, agricultural plant nutrition, pool hygiene, and educational chemistry experiments. The PH Meter Pocket PH107 offers an ultra-portable, easy-to-operate solution for taking quick, accurate measurements on the go. Weighing only a few grams and designed to slip neatly into a shirt pocket or lab coat, this pocket size digital pH tester eliminates the hassle of carrying bulky benchtop meters into field environments.

Equipped with a sensitive glass electrode housed inside a durable protective cap, the device delivers fast thermal response times and steady readings. Whether you are monitoring the health of sensitive fish, preparing agricultural fertigation solutions, or verifying tap water purity, this pen type pH water tester yields reliable data with minimal setup.

Key Technical Features & Specifications

• Full Spectrum Range: Measures $0.0\text{ to }14.0\text{ pH}$ effortlessly across standard testing environments.

• Crisp LCD Display: Built-in high-contrast digital display ensures clear visibility even under bright outdoor light or low-lit laboratory settings.

• Manual Precision Calibration: Features a 1 point manual calibration pH pen mechanism via a back-mounted trimmer screw for rock-solid confidence.

• Long Battery Life: Powered by 3 x 1.5V button cell batteries (AG13), providing up to 150 hours of continuous operation.

• Operating Conditions: Operates smoothly in fluid temperatures ranging from $0^\circ\text{C}\text{ to }50^\circ\text{C}$ ($32^\circ\text{F}\text{ to }122^\circ\text{F}$).

Specification	Technical Detail
Model	PH107
Measurement Range	$0.0\text{ — }14.0\text{ pH}$
Resolution	$0.1\text{ pH}$
Accuracy	$\pm 0.1\text{ pH}$ (at $20^\circ\text{C}$)
Calibration	Manual 1-Point Trimmer
Power Supply	$3 \times 1.5\text{V}$ Button Cell Batteries
Dimensions	Approx. $150\text{ mm} \times 29\text{ mm} \times 20\text{ mm}$

Versatile Applications Across Multiple Industries

1. Aquariums & Aquaculture

Maintaining standard pH levels ($6.5\text{ to }8.5\text{ pH}$) is essential for aquatic organisms. Ammonia toxicity increases exponentially at higher pH levels, making routine checks vital. The PH107 serves as an ideal handheld pH meter for aquariums, allowing biological hobbyists and aquaculture operators to verify water quality in seconds.

2. Hydroponics & Soil Testing

Plants absorb vital nutrients like nitrogen, phosphorus, and potassium within strict pH bands (typically $5.5\text{ to }6.5\text{ pH}$). Utilizing this compact tester allows growers to optimize nutrient absorption, preventing plant lockout and maximizing crop yields.

3. Swimming Pools, Spas, and Domestic Water

Unbalanced pool water can cause eye irritation, skin dryness, and pipe corrosion. Chlorine sanitizer performance drops dramatically when pH drifts above $7.8\text{ pH}$. The PH107 provides quick daily verification to ensure safe swimming conditions.

4. Educational & Academic Laboratories

High schools and university chemistry departments require simple, cost-effective instruments for student experiments. The single-button design and transparent calibration process offer students hands-on learning about acid-base chemistry without complex digital menus.

Best Practices for Maintenance & Care

To ensure long-term accuracy and extend the lifespan of your pH glass bulb electrode, follow these maintenance guidelines:

1. Hydration: Never allow the glass electrode tip to dry out completely. Store the tip with a few drops of storage solution or neutral water inside the protective cap.

2. Gentle Rinsing: Always rinse the electrode with distilled or deionized water between sample measurements to prevent cross-contamination. Avoid wiping the glass bulb with tissue paper, as static charges can destabilize readings.

3. Routine Calibration: Perform a single-point calibration with buffer solution ($\text{pH } 6.86$ or $4.00$) at least once every few weeks, or whenever you notice reading drift.

4. Proper Submersion: Never submerge the entire meter past the cap collar line; the upper housing contains sensitive electronic circuit boards and battery compartments.

Introduction (Induction)

The PH Meter Pocket PH107 provides rapid, reliable, and portable liquid testing for professionals, hobbyists, and students alike. Designed in a compact pen-style form factor, this pocket size digital pH tester allows you to quickly monitor acidity and alkalinity levels in aquariums, swimming pools, hydroponics, and laboratory settings.

To get started, uncap the protective cover and submerge the glass electrode tip into your liquid solution. Powered by standard button cell batteries, the clear LCD screen displays real-time pH readings with a high resolution of $0.1 \text{ pH}$. The single-point manual calibration allows you to fine-tune accuracy using standard buffer solutions and the included calibration mini-screwdriver.

❓ Frequently Asked Questions (FAQ)

Q1: How do I calibrate the PH Meter Pocket PH107?

Submerge the tip up to the maximum immersion line into a $\text{pH } 6.86$ or $\text{pH } 4.00$ buffer solution. Let the reading stabilize, then use the provided mini screwdriver to turn the rear calibration trimmer until the LCD matches the buffer value.

Q2: What is the measuring range and accuracy of this device?

The device covers a full $0.0\text{ to }14.0\text{ pH}$ scale. It delivers an accuracy of $\pm 0.1\text{ pH}$ (at $20^\circ\text{C}$) with a $0.1\text{ pH}$ resolution, making it ideal for daily testing routines.

Q3: Can I use this handheld tester for saltwater aquariums and hydroponics?

Yes, this pen type pH water tester is fully compatible with fresh water, salt water, hydroponic nutrient liquids, swimming pool water, and general lab liquids.
