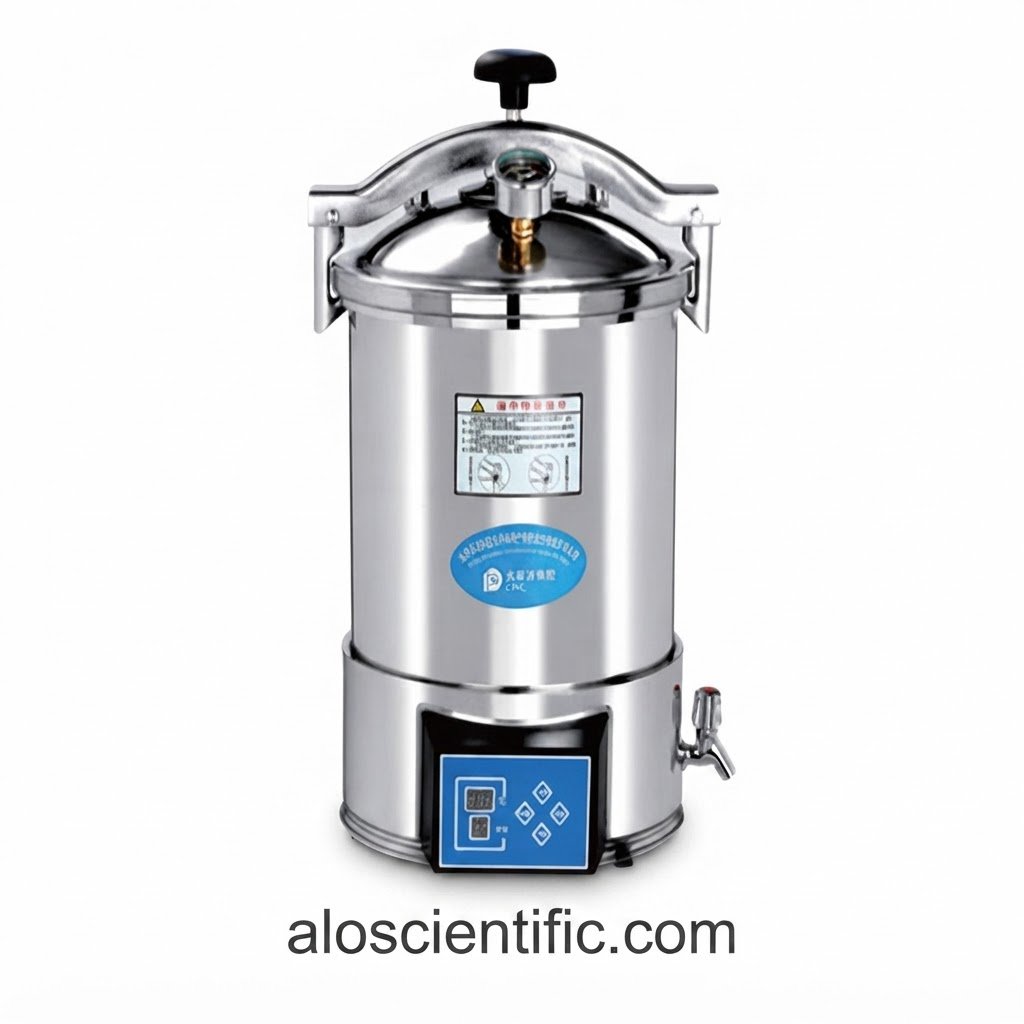

Overview of Model AT-P24D Autoclave AT-P24D

The Autoclave AT-P24D is a high-performance digital pressure sterilizer designed to meet the rigorous demands of modern laboratories and healthcare facilities. Utilizing saturated steam under controlled pressure, it achieves complete destruction of bacteria, viruses, fungi, and resilient endospores. Its expanded chamber capacity allows for larger instrument loads while maintaining a compact, portable footprint.

Key Features & Technical Benefits

• Advanced Digital Controls: Features an intuitive digital interface that allows precise monitoring and adjustment of sterilization parameters.

• High-Capacity Chamber: Provides ample internal volume to accommodate multiple instrument trays or larger media bottles simultaneously.

• Heavy-Duty Construction: Fabricated from premium-grade stainless steel to ensure exceptional corrosion resistance, durability, and uniform heat distribution.

• Comprehensive Safety Mechanisms: Equipped with automated pressure-release valves, a secure multi-point lid lock, and dry-burn protection to safeguard operators.

Autoclave AT-P24D Digital Portable Sterilizer Portable Autoclave AT-P24D

• Medical & Dental Clinics: Perfect for processing surgical tools, dental handpieces, and procedural kits.

• Research & Microbiology Labs: Ideal for sterilizing culture media, petri dishes, pipettes, and hazardous biological waste.

• Field Healthcare Units: Offers dependable mobility and rapid sterilization performance for mobile clinics or emergency response teams.

Frequently Asked Questions (FAQ) Digital Autoclave Machine

• What is the capacity of the Autoclave AT-P24D? The AT-P24D model features an expanded 24-liter (or equivalent large-capacity scale depending on series specifications) internal chamber designed to handle bulk medical and laboratory loads efficiently.

• How do the digital controls improve sterilization? The digital system provides clear visual feedback of temperature and time cycles, reducing human error and ensuring consistent sterilization compliance.

• What safety features prevent opening under pressure? The unit utilizes a mechanical pressure interlock system that prevents the lid from being unsealed while internal pressure remains above safe thresholds.

• What type of water should be used for optimal performance? Always use distilled or demineralized water to prevent mineral scale buildup and extend the operational life of the internal heating elements.

The AT-P24D (often associated with digital or timing-controlled portable/desk-top pressure steam sterilizers like the BKM-P24D series) is a 24-liter capacity digital portable autoclave. It is engineered for reliable, high-pressure, and high-temperature sterilization of medical tools, laboratory instruments, and culture media.

Below is a detailed description of its key features, specifications, and applications:

1. Product Overview & Design Medical Steam Sterilizer

• Type: Digital / Timing-Control Portable Pressure Steam Autoclave

• Capacity: 24 Liters

• Body Construction: Manufactured entirely from high-grade SUS304 stainless steel, ensuring robust durability, rust-resistance, and longevity under intense thermal and pressure conditions.

• Portability: Designed with a compact, self-contained footprint that makes it ideal for facilities where space is at a premium, without sacrificing sterilization chamber volume.

2. Technical Specifications

Autoclave AT-P24D Digital Portable Sterilizer

• Chamber Size: Approximately $\phi 280 \times 310 \text{ mm}$ (deepened configuration)

• Working Temperature: Rated around $126^\circ\text{C}$ (with adjustable temperature settings typically ranging from room temperature +5 up to $126^\circ\text{C}$)

• Working Pressure: $0.14 \text{ to } 0.16\text{ MPa}$

• Max Safety Pressure: $0.165\text{ MPa}$ to $0.17\text{ MPa}$

• Power Supply / Consumption: AC 220V, 50/60Hz consuming roughly 2.0 kW of power.

• Time Setting: Microcomputer-controlled digital timer, usually adjustable from 1 to 99 minutes.

3. Key Features & Characteristics

• Microcomputer Control & Digital Display: Equipped with digital LED tubes or panels that clearly show operational status, temperature, and remaining sterilization countdown time.

• Immersion Electric Heating Pipe: Features an efficient electric heating element built to quickly turn water into saturated steam, maximizing thermal efficiency.

• Automatic Safeguards & Alarms:

• • Autoclave AT-P24D Digital Portable Sterilizer Anti-Dry Out / Low Water Protection: Automatically stops heating and triggers a buzzer alarm if the water level drops too low.

  • Over-Temperature / Over-Pressure Protection: Features safety valves that automatically release pressure if it exceeds safe operational thresholds.

  • End-of-Cycle Alert: Sounds a buzzer when the sterilization cycle and heat preservation time are fully complete.

• Silicone Rubber Sealing Ring: Creates an airtight seal on the lid, effectively preventing steam leaks and maintaining stable internal pressure.

• Double-Scale Pressure Gauge: Features a clear, easy-to-read dual-groove pressure gauge for tracking internal pressure status accurately.

4. Primary Applications Laboratory Pressure Sterilize

The AT-P24D is widely utilized across various professional fields, including:

• Medical & Dental Clinics: For sterilizing surgical tools, forceps, and dental instruments.

• Laboratories & Research Institutions: For sterilizing glassware, lab apparatus, and biological dressings.

• Microbiology & Biotechnology: For preparing and sterilizing culture media.

• Veterinary Clinics & Tattoo Studios: For maintaining sterile operating environments on a compact budget.
