Tablet Dissolution Tester
-
- High Accuracy: Microprocessor-controlled temperature and speed ensure strict compliance with USP standards.
- 8-Basket Design: Features 8 vessels and 8 baskets configured for high-throughput batch testing.
- Dual-Function Alignment: Supports easy switching between basket and paddle methods.
- Digital Display: Clear LED screen shows real-time RPM, temperature, and elapsed time.
- Durable Construction: Built with anti-corrosive materials and high-quality glass vessels.
- Auto-Diagnostics: Built-in alarms for temperature deviations and mechanical errors.
SPECIFICATIONS
| Speed range | (20~200)rpm |
| Speed accuracy | ±2rpm |
| Temperature range | ambient to +45.0℃ |
| Temperature Stability | ±0.3℃ |
| Preset timing nine points | (1~999)min |
| Time accuracy | ±0.3% |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension | 960*440*480mm |

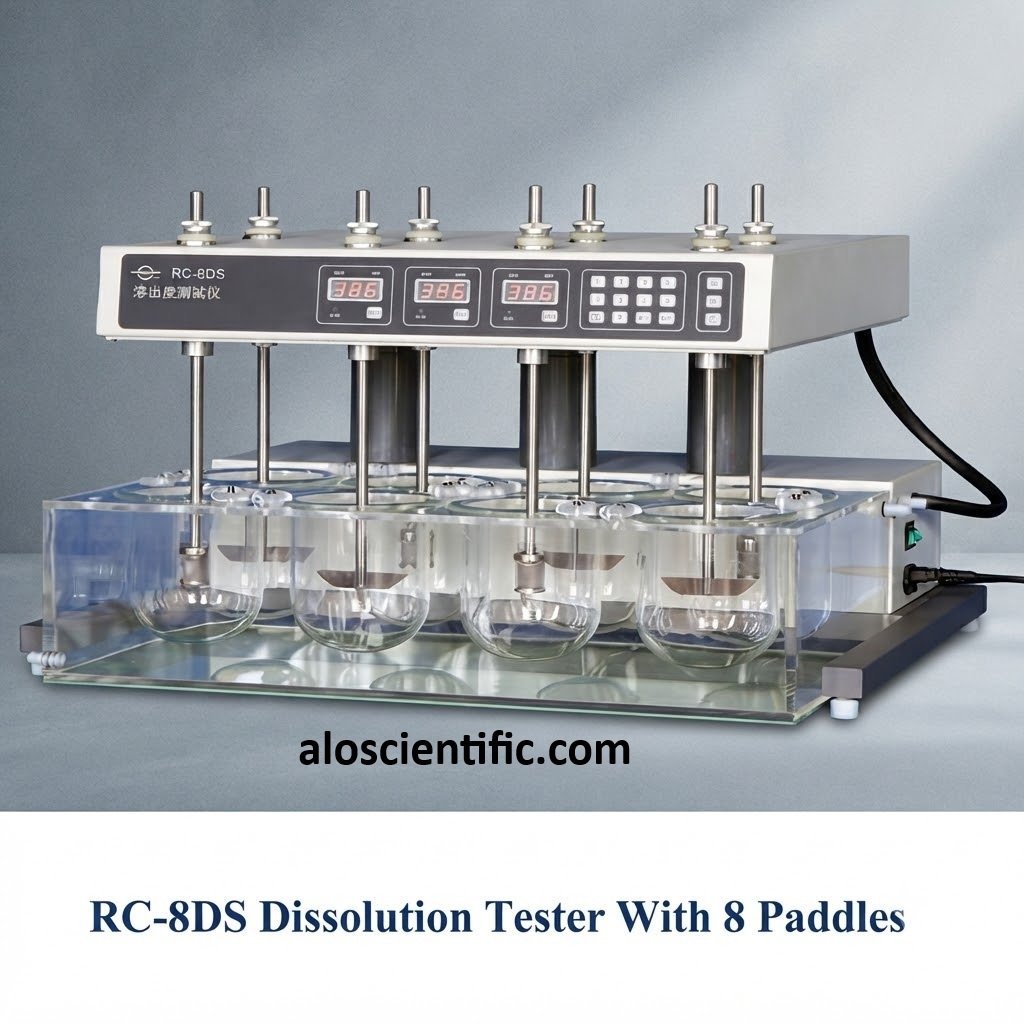

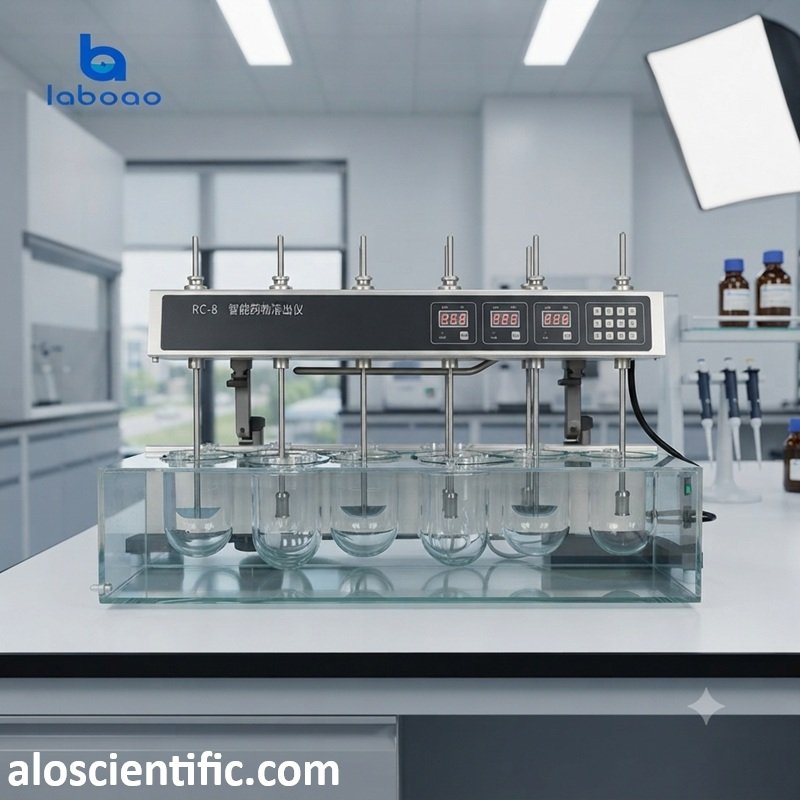

Introduction Dissolution Tester RC-8
The Dissolution Tester RC-8 is a state-of-the-art tablet dissolution testing machine engineered for modern pharmaceutical laboratories. Providing exceptional thermal stability, precise mechanical control, and multi-vessel efficiency, this advanced solid dosage testing instrument ensures your facility meets all required quality assurance and regulatory benchmarks.
Our Advantages
1: Eight Vessels and Poles – The RC- dissolution tester is equipped with eight vessels and poles, allowing for the simultaneous testing of multiple samples and significantly improving testing efficiency.
2: Automatic Head Movement – With the automated up and down movement of the testing head, the operation becomes more convenient, enhancing user experience.
3: Stainless Steel Material – The basket units and paddle units made of imported stainless steel (SUS316L) ensure the durability and reliability of the product.
4: Uniform Heating System – The magnetism-pumped circular water current ensures even heating within the system, maintaining temperature balance during testing.
5: Automated Control and Parameter Presetting – Utilizing an MPU for automated control, users can preset parameters such as temperature, rotational speed, and time, ensuring precise and reproducible testing.
Frequently Asked Questions (FAQ)
- Q: What is the primary function of the Dissolution Tester RC-8?
- A: It is designed to evaluate drug release profiles from tablets and capsules to ensure strict quality control in pharmaceutical manufacturing.
- Q: How many vessels are included in this system?
- A: This model features an 8-vessel configuration to support high-throughput testing and precise comparative analysis.
- Q: Does this equipment comply with industry standards?
A: Yes, it is fully engineered to meet official pharmacopeial requirements for pharmaceutical testing.
